TLZ03 half-wave rectifier

The AC brake has a fast starting response, short braking time, and adjustable reliable braking torque

Product serial number:

Category:

Keyword: TLZ03 half-wave rectifier

  • Product Description
  • Technical parameters

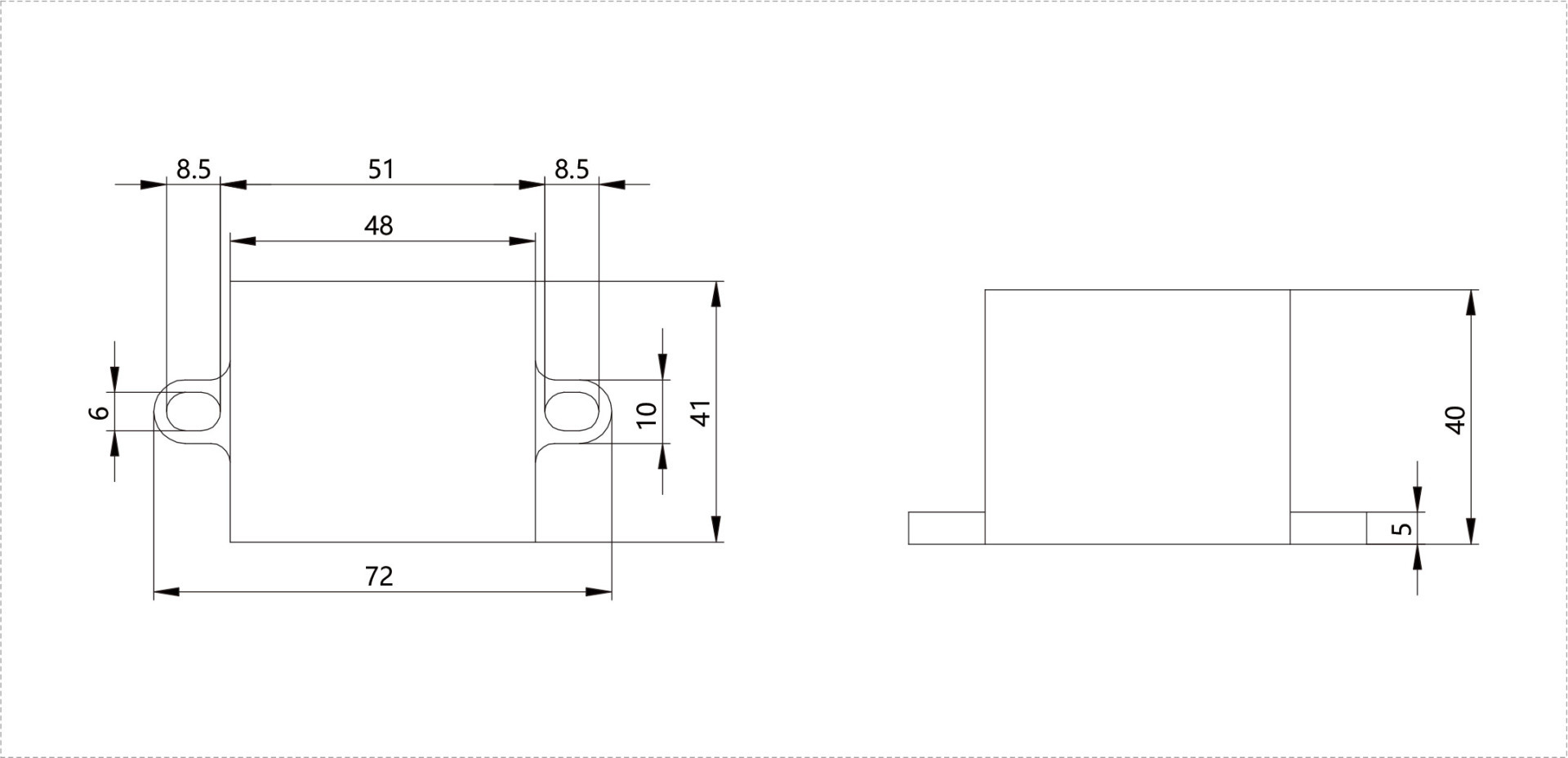

  • Appearance and installation dimensions
  • Installation and debugging
  • Common faults and troubleshooting
  • Sample and video download
    • Commodity name: TLZ03 half-wave rectifier

    Product Introduction

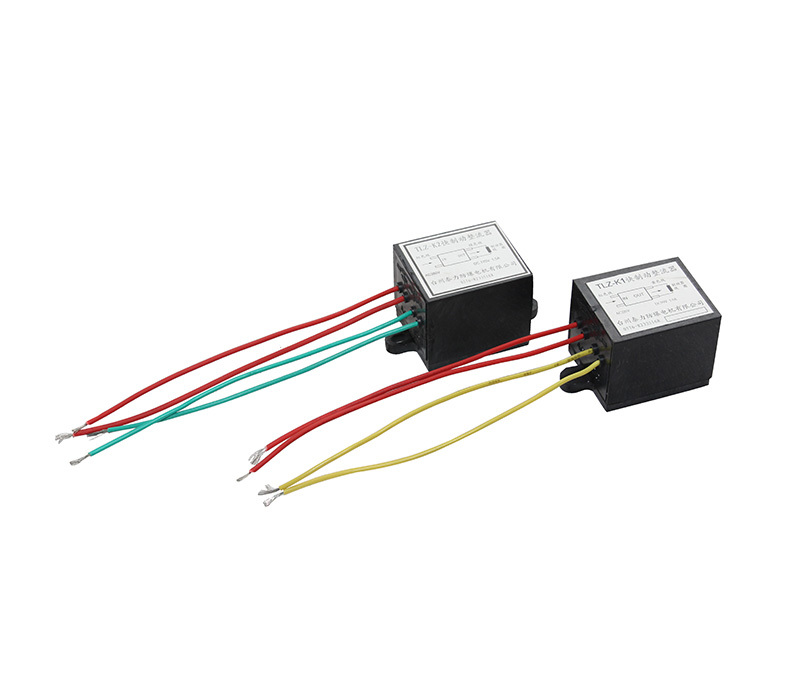

    The TLZ03 series rectifier is used to connect DC units to AC power supplies; it is a quick-braking rectifier. Its function is to convert the input AC power into DC power through half-wave rectification, providing the input power for the DC electromagnetic brake. The brake's rapid action is achieved through a built-in switch, eliminating the need for an external switch.





  • Specifications and Model

    Input Voltage (AC)

    Output Voltage (DC)

    Current

    TYPE

    V

    V A
    TLZ03-1

    220V

    99V

    1A

    TLZ03-2

    380V

    170V

    1.5A









  • Img

  • Rectifier connection

    AC voltage input at points 1 and 2, connect to power supply

    DC voltage output at points 2 and 4, connect to brake coil

    When points 3 and 4 are directly connected, the brake is slow braking; when an external switch is connected, the brake is fast braking
