TLZ01 series rectifier
Name:

TLZ01 series rectifier

No.:
YJ-011
Affiliate classification
没有此类产品
Detail
technical parameter

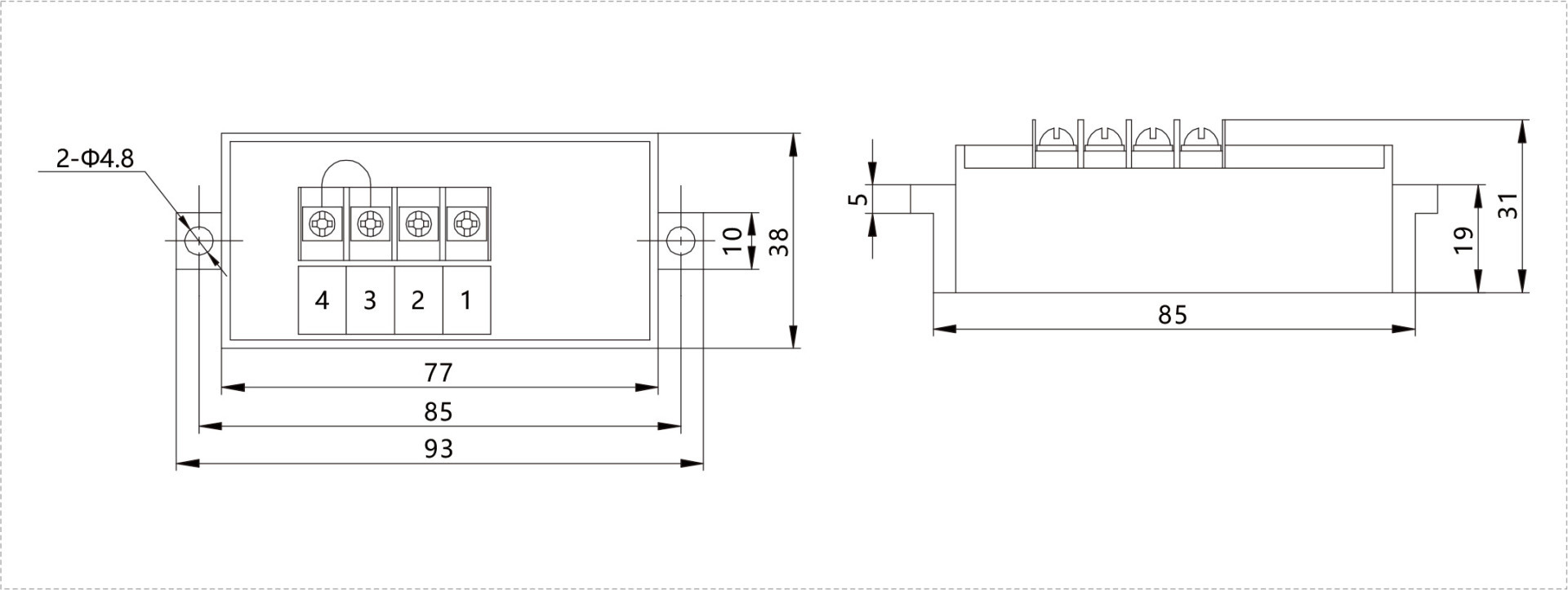

Shape and installation dimensions
Installation and commissioning
Common failures and troubleshooting

Application of TLZ01 Half-wave Rectifier

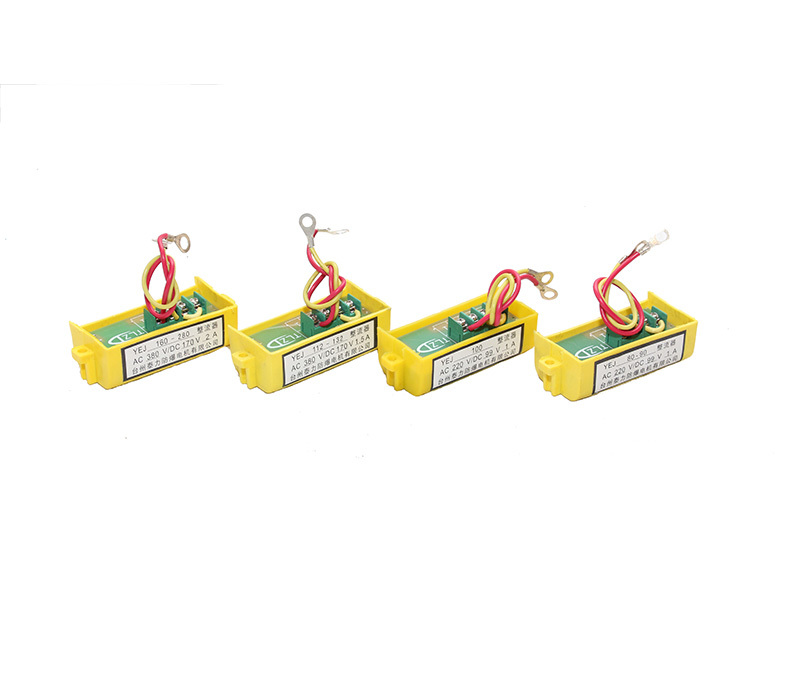

TLZ01 series rectifier is used to connect DC unit with AC power supply. It is specially designed for DC electromagnetic brake. Its function is to supply input power for DC electromagnetic brake by DC current output after half wave rectification of input AC.



Rectifier Connection Method

1, 2 two-point AC voltage input, power supply

2 and 4 two-point DC voltage output connected with brake coil

When 3 and 4 points are connected directly, the brake is slow braking, and when external switches are connected, the brake is fast braking.



Corresponding parameter set not found, please add it in property template of background

Specification type

input voltage

(AC)

output voltage

(DC)

Electric current

TLZ01-1

220V

99V

1A

TLZ01-2

380V

170V

1.5A

TLZ01-3

380V

170V

2A
