TLZ04 half-wave rectifier

The AC brake has a fast starting response, short braking time, and adjustable reliable braking torque

Product serial number：

YJ-014

Category:

Keyword： TLZ04 half-wave rectifier

- Commodity name: TLZ04 half-wave rectifier
- Commodity ID: YJ-014
Product Introduction

The TLZ04 series rectifier is used to connect DC units to AC power supplies and is a fast-braking rectifier. Its function is to convert the input AC power into DC power through half-wave rectification, providing input power for the DC electromagnetic brake. The brake is quickly activated via an internal switch, eliminating the need for an external switch.

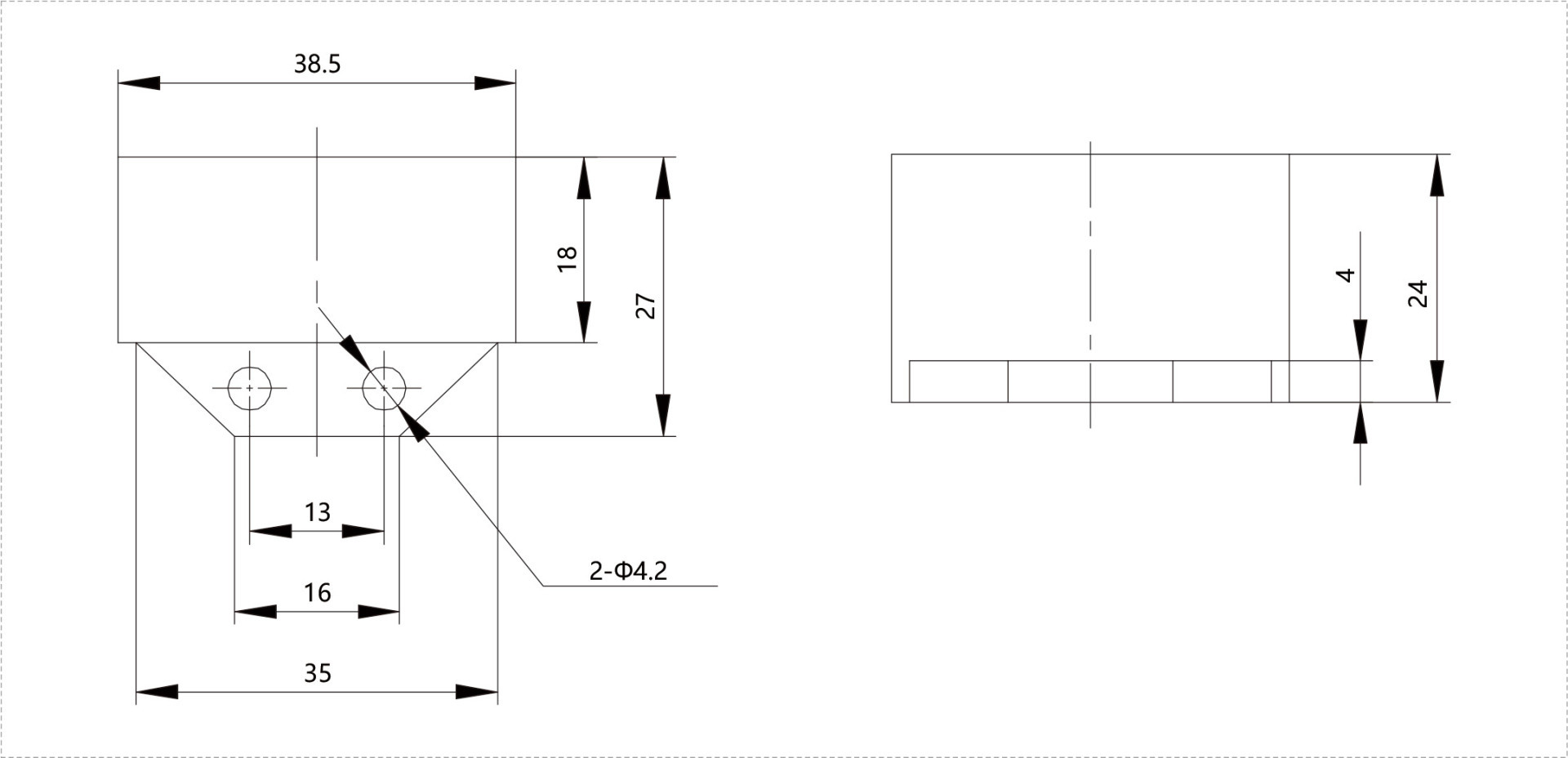

Specifications and Model

Input Voltage (AC)

Output Voltage (DC)

Current

TYPE
V
V A

TLZ04-1

220V
99V 2.5A

TLZ04-2
380V

170V
2.5A
Rectifier connection

1. Red wire → AC voltage input

2. Yellow or green wire → DC voltage output, connected to the brake coil
File Name Size Upload Date Details

TLZ04 Half-Wave Rectifier 661KB 2021/3/10 Click to Download

Operation Video 100M 2021/3/10 Click to Download
