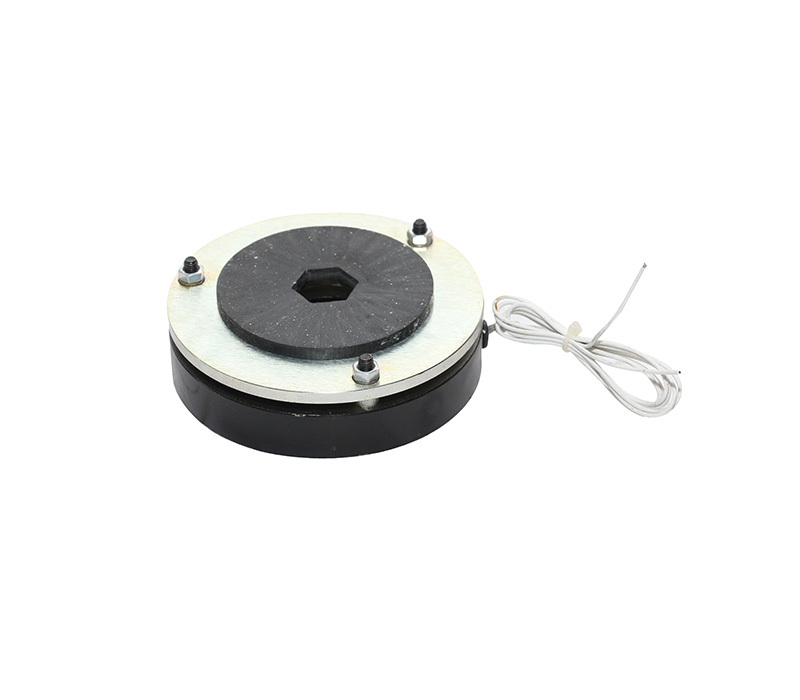

DZM03 DC electromagnetic brake
The AC brake has a fast starting response, short braking time, and adjustable reliable braking torque
Product serial number：
YJ-006
Category:
Keyword： DZM03 DC electromagnetic brake
- Product Description

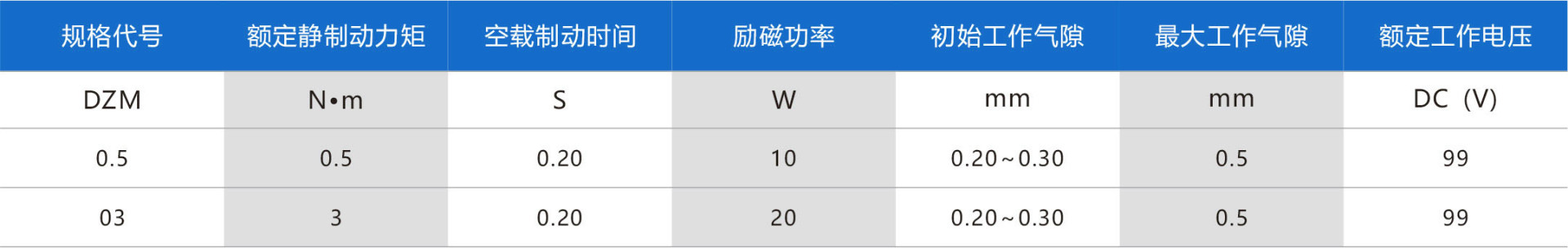

- Technical parameters
- Appearance and installation dimensions
- Installation and debugging
- Common faults and troubleshooting
- Sample and video download
-
- Commodity name: DZM03 DC electromagnetic brake
- Commodity ID: YJ-006
Product Introduction
DZM0.5 and DZM03 DC electromagnetic brakes are a type of brake. Their structure and installation dimensions are specially designed for specific applications, suitable for operation without cooling in special conditions and structures of the product itself.
Working Principle

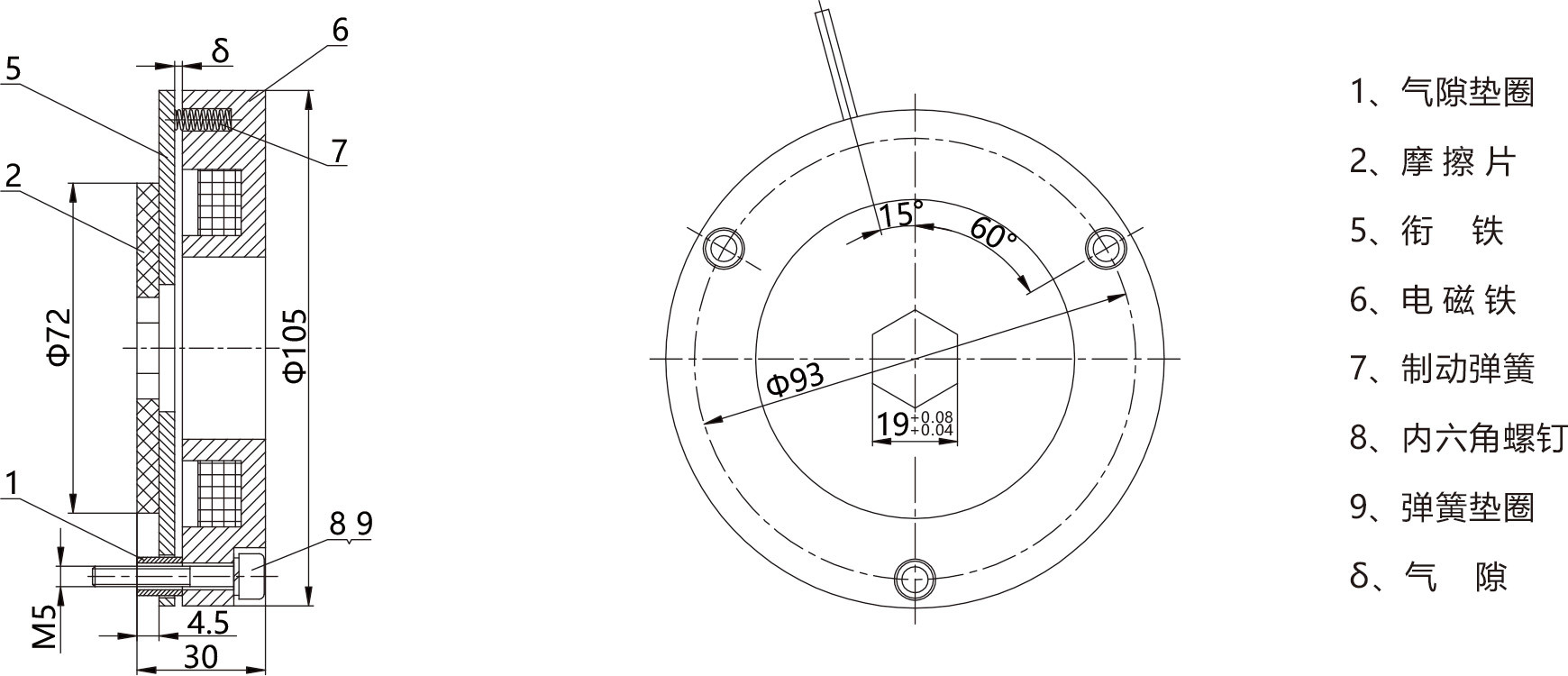

When energized, electromagnet 6 generates a strong electromagnetic force to attract armature 5, compressing brake spring 7, releasing the two mating surfaces of friction plate 2 from the pressure of armature 5 and mounting plate 4 (or other friction surface), allowing the rotating body to rotate freely. When de-energized, through the pressure of brake spring 7, pressure is applied to armature 5, causing it to tightly press against friction plate 2, generating a strong friction braking torque, to rapidly brake the rotating body, achieving accurate positioning.
Product Features
1. Protection rating is IP23;
2. Insulation class is F;
3. Cooling method is self-cooled;
4. Operating ambient temperature range is -15℃ to +40℃;
5. Operating altitude does not exceed 1000m;
6. Working air gap is not adjustable.
-
-
-
-
Serial Number Fault Phenomenon Inspection Location and Method Troubleshooting Measures 1 Brake does not engage (1) Use a multimeter to measure the resistance of the excitation coil to check for disconnections.
(2) Check if the rectifier's DC output power supply is normal.
(3) Check if the brake lead connections are loose.
(4) Check if the brake has accumulated dust on the armature and electromagnet surfaces, blocking the air gap due to prolonged use.(1) Repair or replace the yoke if there is a disconnection.
(2) Replace the rectifier.
(3) Retighten the connections.
(4) Disassemble and clean the surface of foreign objects.2 Brakes ineffective or unreliable (1) Friction pad wear, increased working gap, and reduced torque.
(2) Friction pad damage.
(3) Load inertia is too large, exceeding the braking torque.(1) Readjust the gap.
(2) Replace the friction disc with a new one.
(3) Reselect the model. -
File Name Size Upload Date Details DZM03 DC Electromagnetic Brake 684KB 2021/3/10 Click to Download Operation Video 100M 2021/3/10 Click to Download
