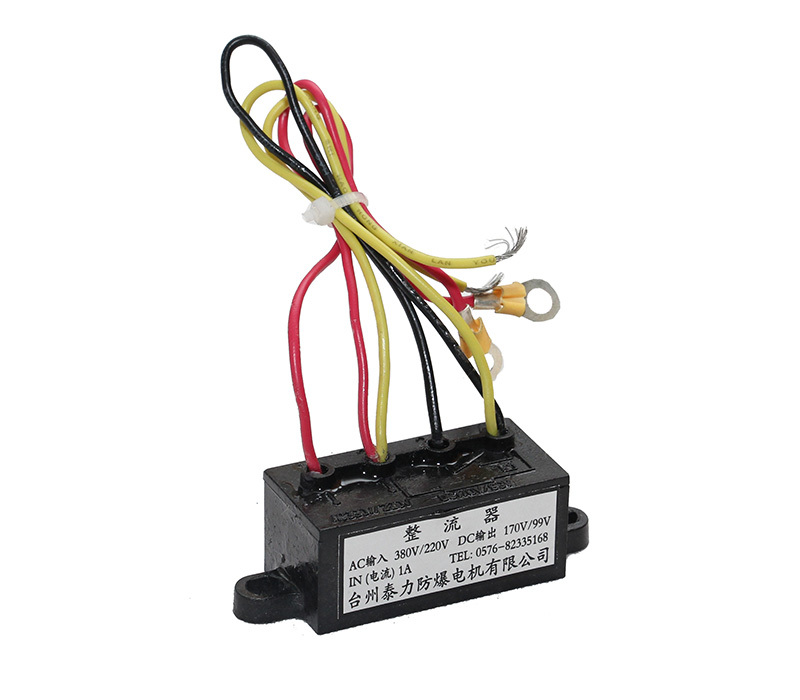

TLZ02 half-wave rectifier

The AC brake has a fast starting response, short braking time, and adjustable reliable braking torque

Product serial number：

YJ-012

Category:

Keyword： TLZ02 half-wave rectifier

- Commodity name: TLZ02 half-wave rectifier
- Commodity ID: YJ-012
Product Introduction

The TLZ02 series rectifier is used to connect DC units to AC power supplies. It is specifically designed for DC electromagnetic brakes. Its function is to convert the input AC power into DC power through half-wave rectification, providing the input power for the DC electromagnetic brake.
Specifications

Input Voltage (AC)

Output Voltage (DC)

Current

TYPE
V
V A

TLZ02-1 220V/380V 99V/170V 1A

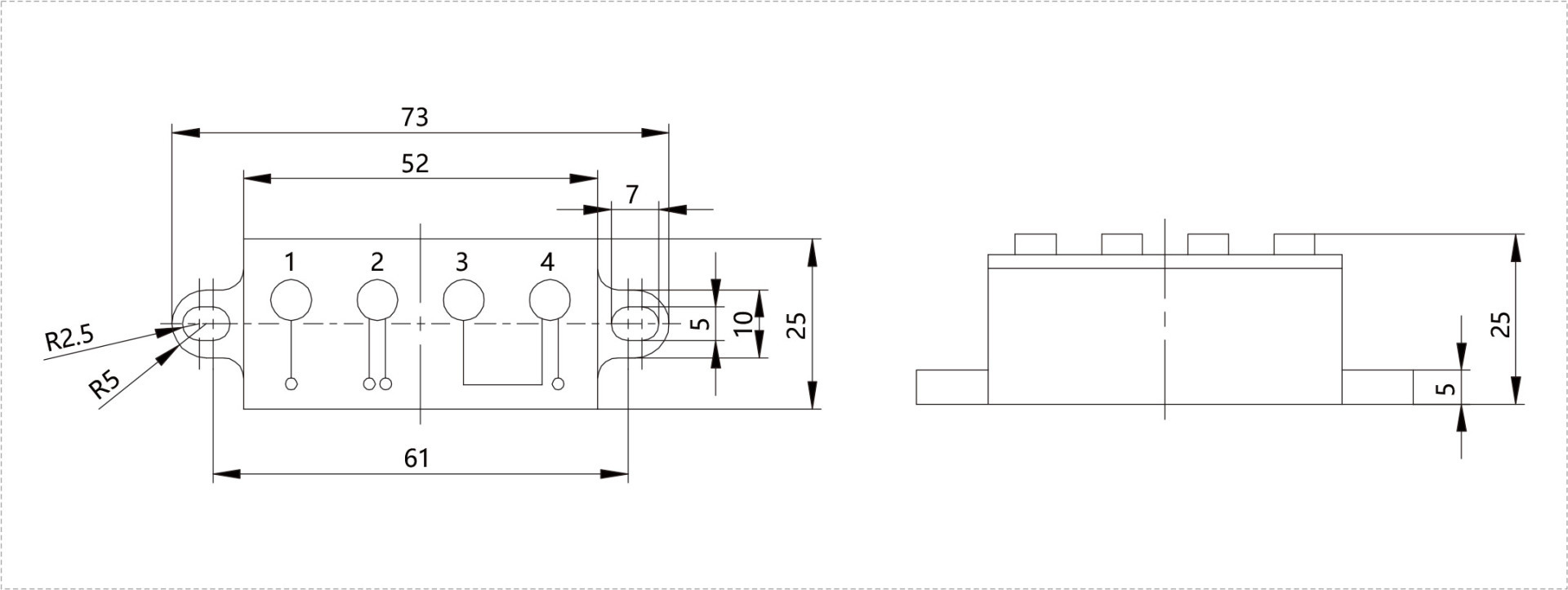

Rectifier connection

AC voltage input at points 1 and 2, connect to power supply

DC voltage output at points 2 and 4, connect to brake coil

When points 3 and 4 are directly connected, the brake is slow braking; when an external switch is connected, the brake is fast braking
