YEJK series electromagnetic brake three phase asynchronous motor

Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
YJ-017
Quantity
-
+
Stock:
0
Product description
Parameters

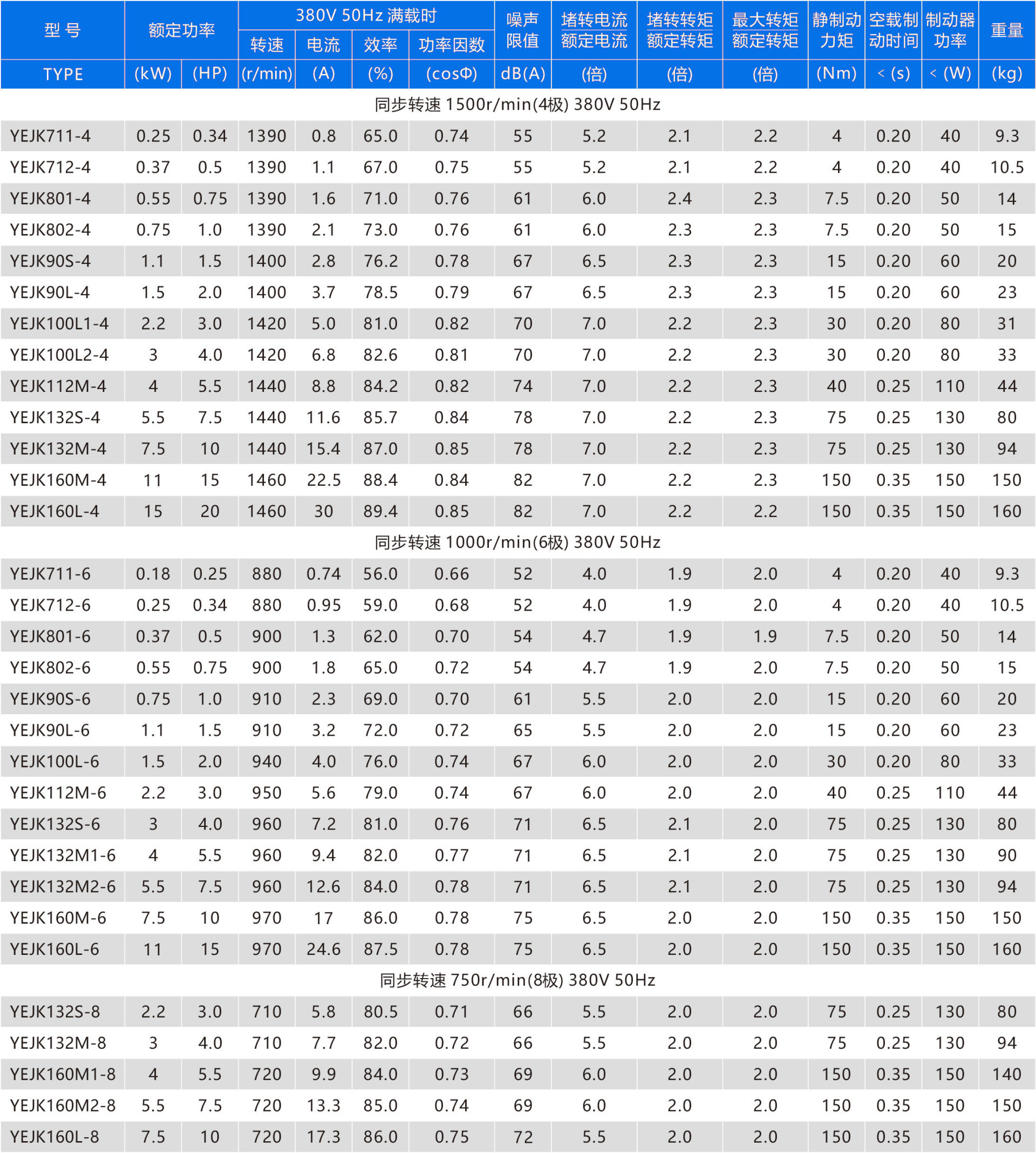

Technical parameter

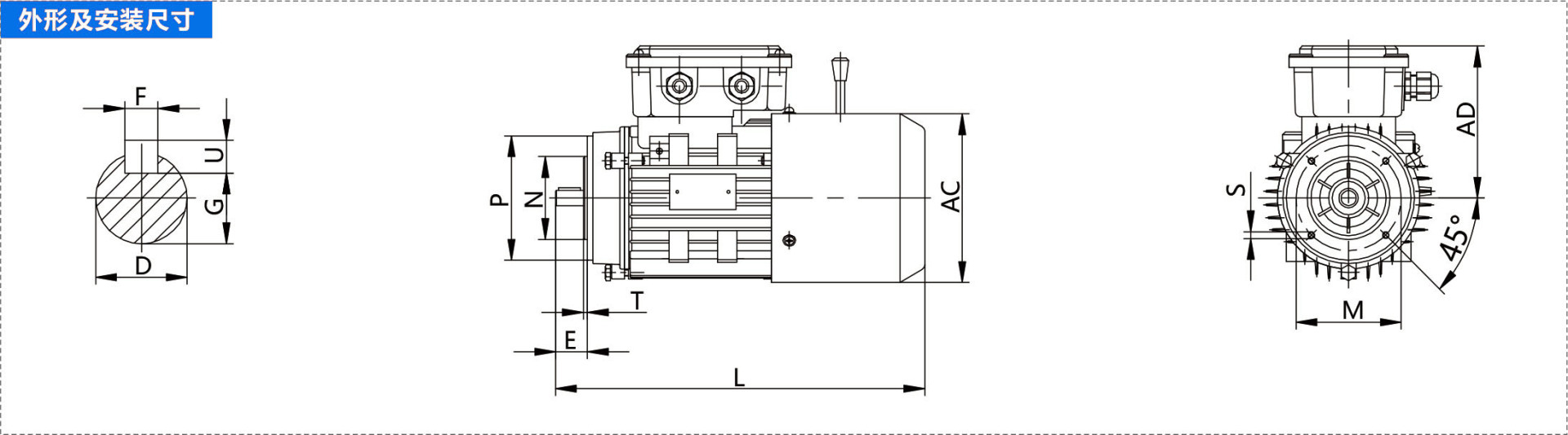

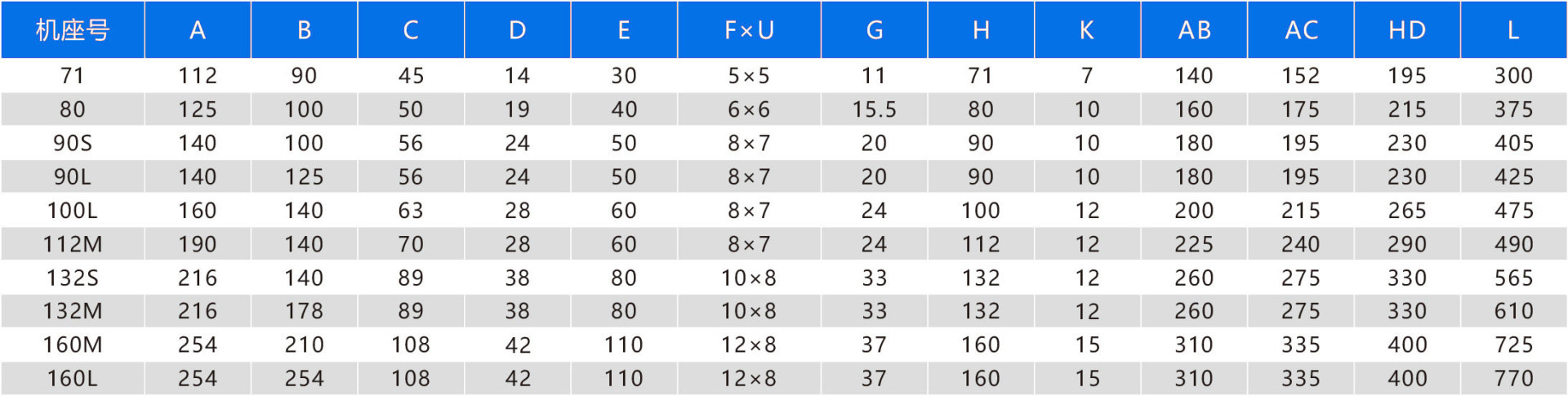

Shape and installation dimensions
Wiring method
Clearance and Torque Regulation
Common failures and troubleshooting
Sample and video download

Product Brief

YEJK series electromagnetic brake three-phase asynchronous motor is a brake motor carefully designed according to the requirements of national standard JB/T6465. It is composed of general three-phase asynchronous motor (Y2 series) and DZK series DC electromagnetic brake. Its power level and installation size are in line with JB/T6456 industry standard and IEC72 international standard, and it is an economical brake motor.This series of products have obtained the certificate of ISO 9001 system and CCC product demonstration.



Scope of use

This series of motors are suitable for non-flammable, explosive and non-corrosive environments. They have the requirements of fast braking, accurate positioning, reciprocating operation and anti-sliding. They are used as main or auxiliary transmission in various machines, such as lifting machinery, transportation machinery, printing machinery, food machinery, construction machinery, woodworking machinery, deceleration machinery and metallurgical machinery.



Working principle

When electrified, the electromagnet produces a strong electromagnetic force to suck the armature plate to compress the brake spring. The two dual surfaces of the friction disc are separated from the pressure of the armature plate and the plane of the back cover of the motor, and the motor can rotate flexibly. When power is lost, the armature plate is pressurized by the pressure of the brake spring to tighten the friction disc and generate strong friction braking moment, so that the rotating motor brakes rapidly and achieves accurate positioning.



Product characteristics

1. The motor protection level is IP44 and the brake is IP23.

2. The cooling mode of motor is IC411 (self-fan cooling).

3. The release device is an external wrench, which is flexible and convenient to release manually.

4. Motor insulation grade is B and F, brake insulation grade is F.

5. Installation size and power level of the motor fully conform to JB/T6456 industry standard and IEC-72 international standard.

6. 71 is aluminium-shell motor, 80-160 is aluminium-shell or cast-iron-shell motor.



Conditions of use

1. Rated voltage: The standard product is AC380V 50Hz, or can be designed according to customer requirements.

2. Working mode: S1 (continuous working system);

3. The altitude should not exceed 1000mm.

4. Environmental temperature: - 15 ~40 C;

5. When the monthly mean minimum temperature is not higher than 25 C, the monthly average maximum relative humidity is 90%.



We could not find any corresponding parameters, please add them to the properties table

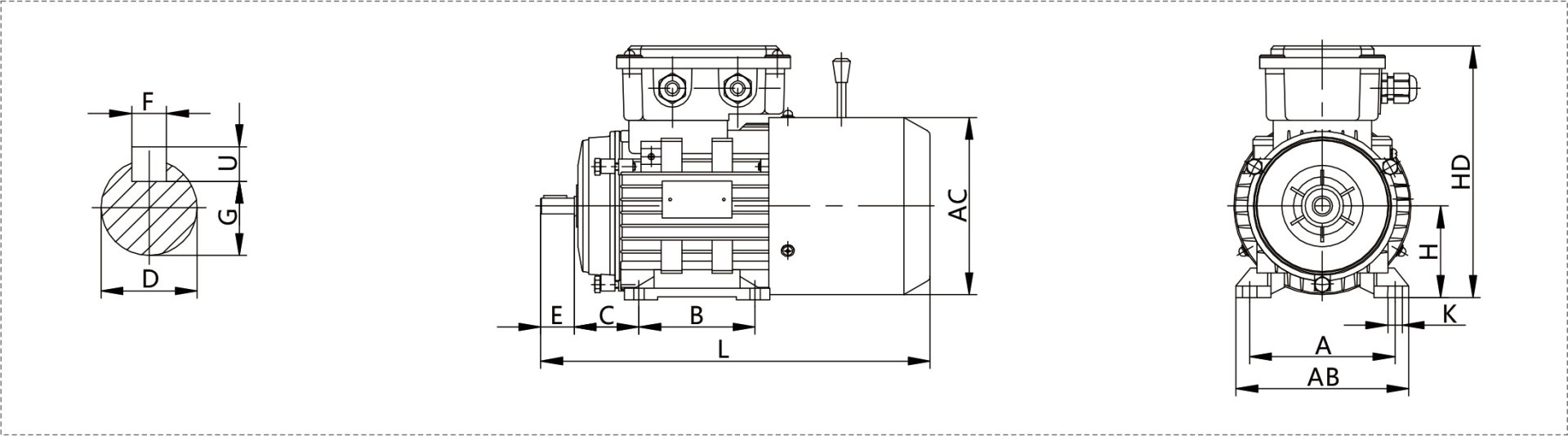

Type B3 Seat Motor without Bottom Foot and Flange on End Cover

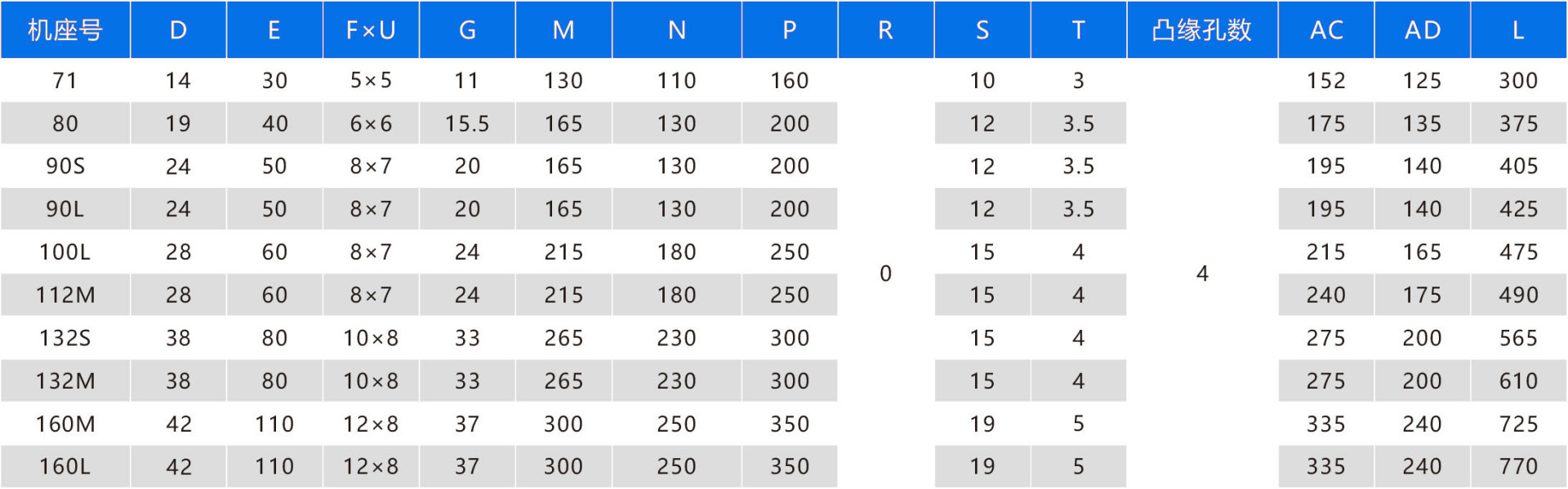

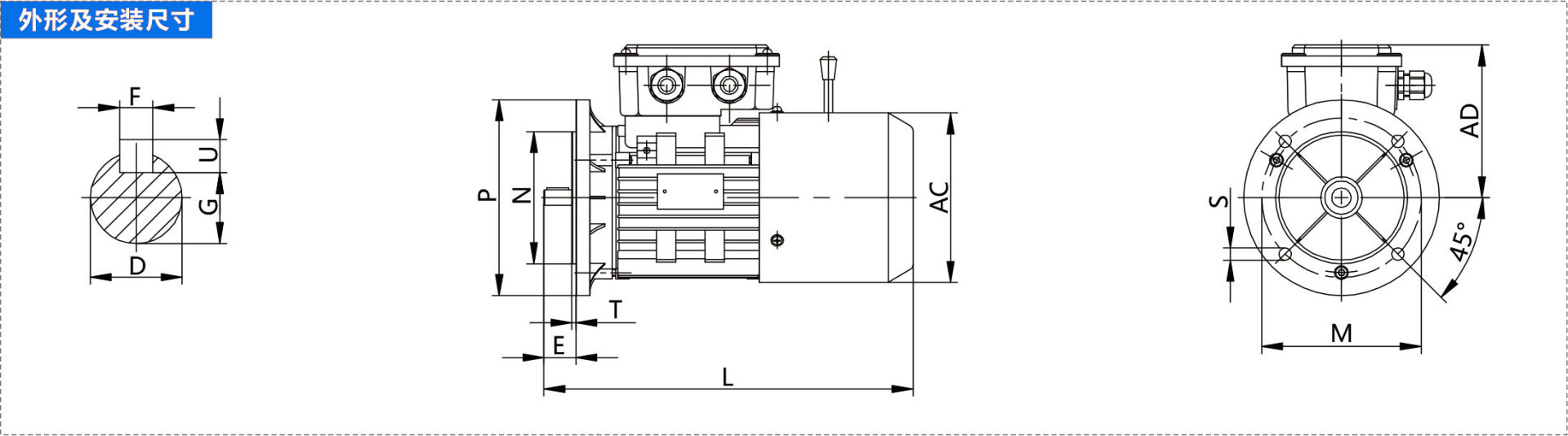

Motors with flanges (through holes) on the end cap and no bottom foot on the seat of Model B5

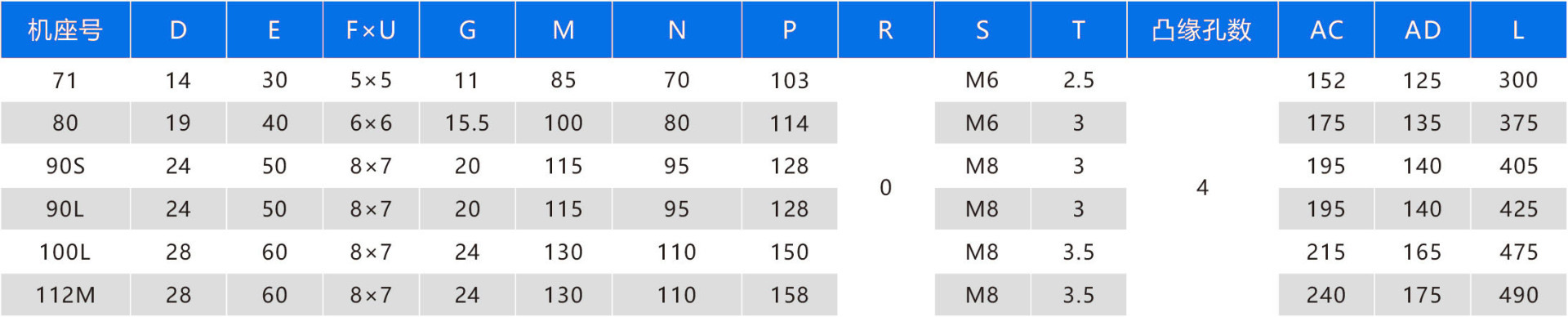

Motors with flanges (small flanges with screw holes) on the end cao and no bottom foot on the seat of Model B14




1、the motor part, when it leaves the factory at or below 3kW, is Y-connection, and the rest is delta-connection.
2、the brake part, the motor with seat number 100 and below is DC99V, and the motor with seat number 112 and above is DC170V.

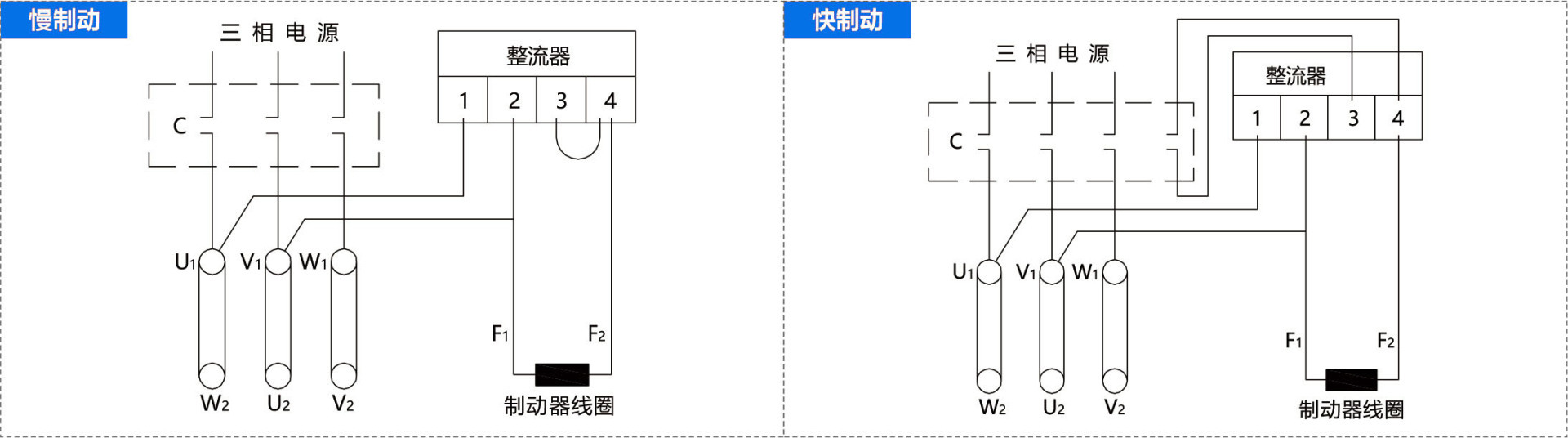

The motor is connected by Y and the brake is connected by DC99V as follows:

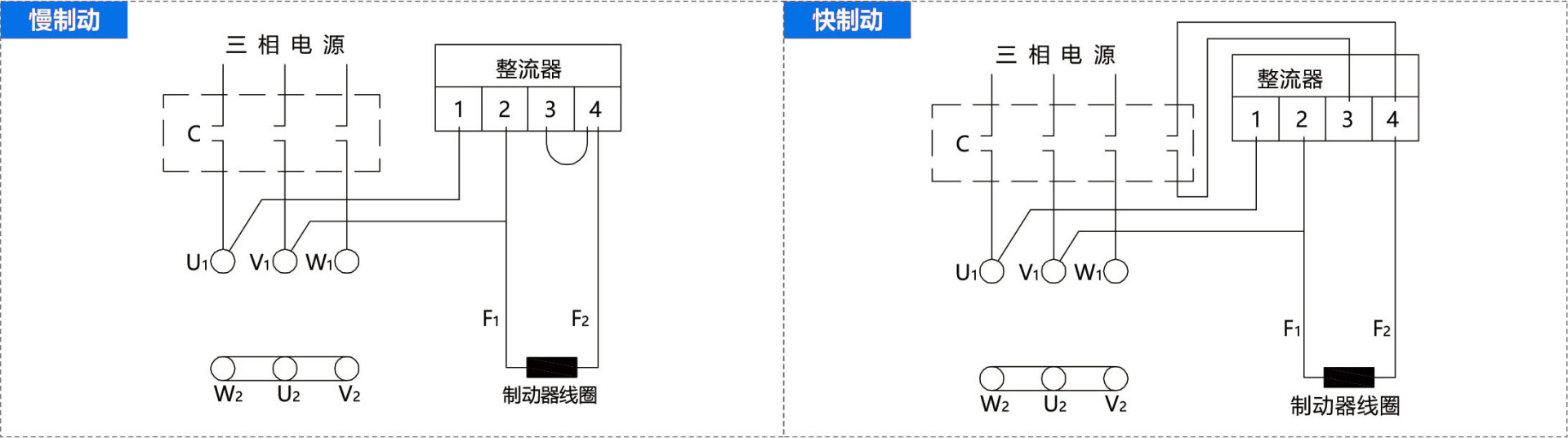

The motor is connected by delta and the brake is connected by DC170V as follows:

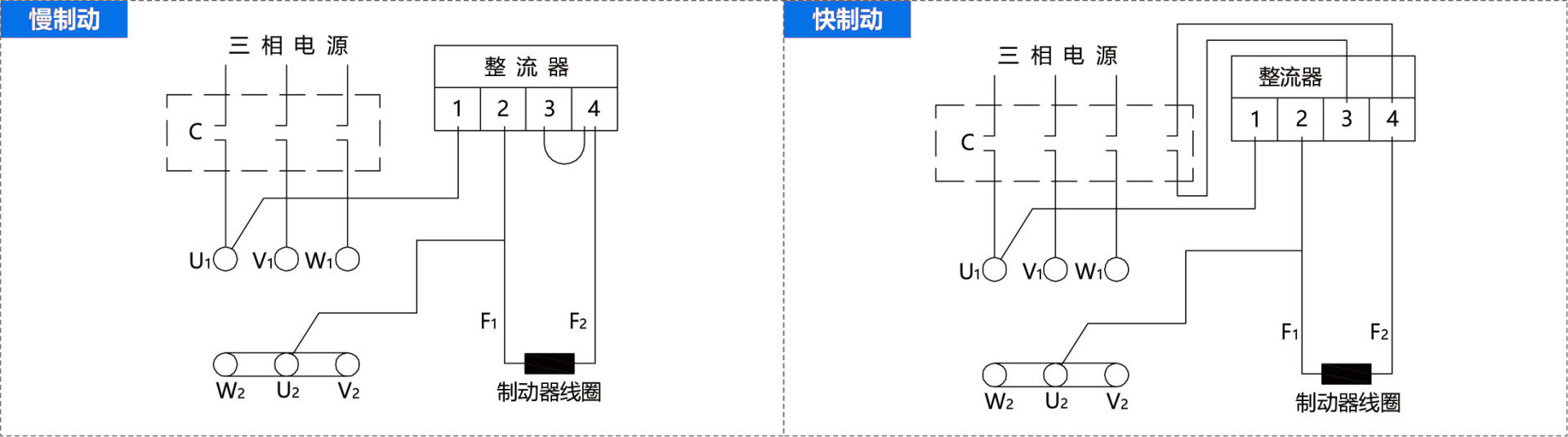

The motor is connected by Y and the brake is connected by DC170V as follows:

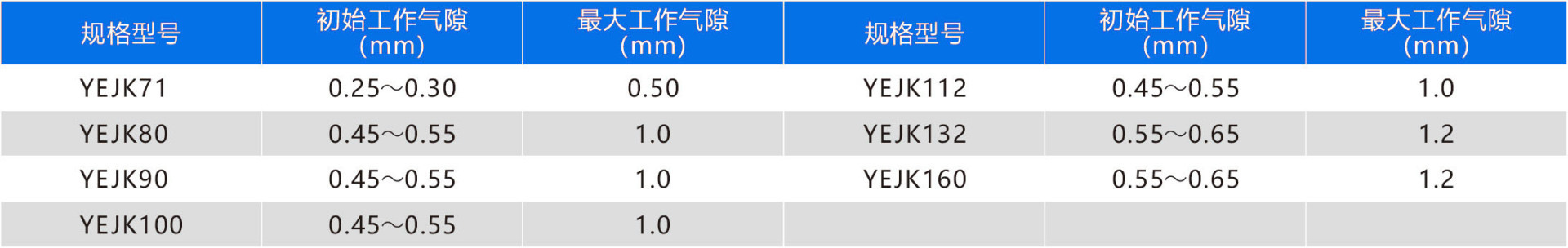

I. Air Gap Value of Brakes in Electric Machines of Various Specifications in this Series (Delta)




2. Inspection of air gap

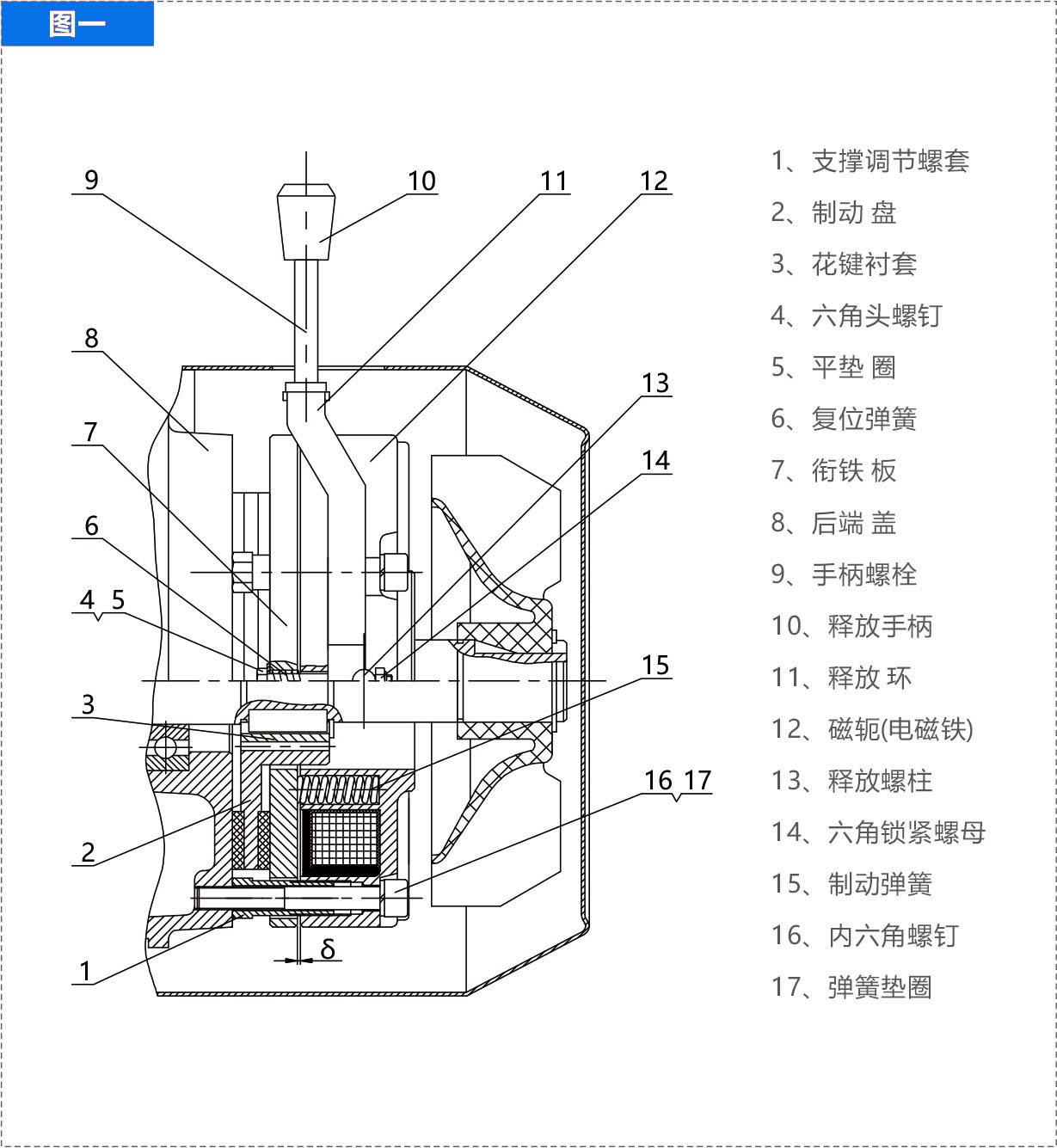

As shown in Figure 1, the distance between armature plate 7 and electromagnet 12 is called air gap (delta). Normal working air gap (delta) does not exceed the prescribed maximum air gap value. The motor is adjusted at the beginning when it leaves the factory.Within the working air gap range, after running for a period of time, the air gap value will increase due to friction wear, which will affect the normal suction and braking effect of the brake. Therefore, after the motor is used for a period of time, it  must press Maximum air gap value, select plug size, check the size of air gap. When inspecting, the size of the plug ruler can be directly inserted into the air gap (delta). If it is inserted, it means that the air gap is too large and must be entered.Line adjustment.






3. Air Gap Adjustment

The gauge thickness is selected according to the specified initial working air gap value. As shown in Fig. 1, loosen the inner hexagonal screw 16, and screw the support adjusting screw sleeve 1 to the electromagnet direction for 1-2 mm to facilitate air  gap adjustment. Place the plug ruler in the air gap (delta) next to the support adjusting bolt, slowly screw in the inner hexagonal screw 16, press the plug ruler. Fig. 1 then tighten the top cover 8 plane of the support adjusting screw sleeve, and pull out the plug ruler. There are three groups of internal hexagonal screw 16 for DZK04-75 fixation. The air gap values on the edges of the three groups of screw must be adjusted to the initial working air gap values according to the above methods. The air gap values in the three places must be uniform. Finally, the internal hexagonal screw 16 must be tightened. There are four groups of internal hexagonal screw 16 for DZK150 fixation. The debugging method is the same as above. Generally, diagonal screw should be adjusted first. After adjustment, the air gap should be checked once with a plug ruler to prevent the unevenness of the air gap. If there is no standard plug gauge for air gap adjustment, it can be replaced by similar thick and thin iron sheet.



4. Torque Regulation

When the braking moment does not reach the rated braking moment in the normal working air gap, three insurance nuts 4 (six above seat number 132) can be uniformly screwed forward and compressed.Dynamic spring 3, can increase the braking moment, but not too much, as long as it reaches the rated braking moment on the nameplate, because the spring pressure is too large, it will cause difficulty in attracting, or give out ugly.Squeezing electromagnetic sound, serious will burn the coil.

NO. Fault phenomenon  Examination site and method Solutions
1 Brakes do not absorb
severe vibrations and
squeaks
(1) As shown in Figure 1, check whether nut 5 is
loose or not.
(2) Measure whether the air gap (S) exceeds the
maximum working air gap value;
(3) Measure the resistance of three-phase winding
with multimeter. Is it basically average? Is there a
break?
(4) Check whether the AC three-phase power supply
is out of phase with SOOV AC voltage of multimeter;
(5) excessive braking moment exceeding rated
value;
(6) Check whether foreign bodies are stuck on the
surface of iron absorption or whether dry grease
deposits cause unevenness on the surface;
(7) The surface of iron absorption is uneven after
long-term use.
(1) Tighten nut 5;
(2) If the air gap (S) is too large, it will be adjusted to
the Initial working air gap.
(3) To repair or replace the magnetic rollers with
broken wires;
(4) Eliminate problems found;
(6) Adjusting the compression length of the brake
spring to control the braking moment;
(6) Removing foreign bodies and grease scale;
(7) Leveling by lathe or surface grinder;
2 Brake fail ure and
brake fail ure
(1) Friction disc wear. The working air gap increas- es and the torque decreases.
(2) Friction disc damage; (moment inertia Is too large to exceed braking
(1) Re-adjusting air gap(δ);
(2) Replacing new friction discs;
(3) Re-selection of motor models
3 Motor
heating
(1) Overload. Over the specified current of name-
plate.
(2) Using frequency converter power supply, the
use time in low frequency band is too long;
(3) Whether there are cotton wool, yam and paper
on the air Inlet and blade of the motor to block up
the cooling air source.
(4) Check whether the power supply and motor are
out of phase.
(1) Reduce the load, control the rated load, of
reconsider the selection of motor.
(2) External additional fan;
(3) Clean up cotton floss and other debris in the ah
Inlet of the motor and on the wind blade;
(4) Repair.
4 When released
manually the rotat ing shaft does not move.
(1) The friction disc is adhered to by oil (from the gearbox or elsewhere).
(2) The brake is not used for a long time, and the plane friction disc of the motor end cover is rusty,
(1) Remove the friction disc and wipe it dry before assembling.
(2) After disassembly, the rust spots can be removed and reassembled, which will work normally.
